DS-930
Suitable for a wide range of services conditions.
Application
- For use in pumps, compressors and other rotary shaft equipment.
- For pulp and paper, petrochemical, food processing, wastewater treatment and other demanding applications.
Type DS-930 mechanical seals is a general purpose elastomer bellows nonpusher
seal.

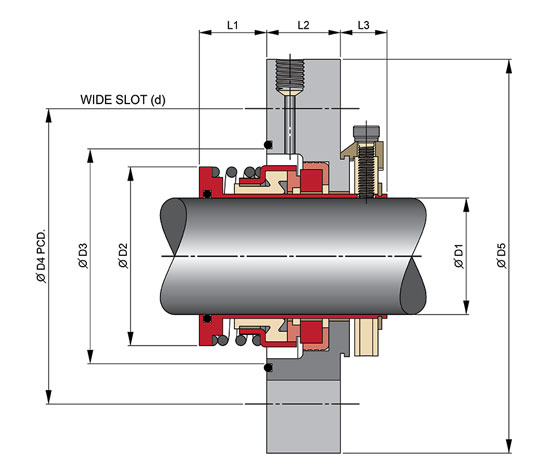

View Sheet
Operating Conditions
- Max. Operating Pressure : 30 kg/cm 2 *
- Temperature Range : -15 to 200 *
- Max. Rubbing Speed : 20 m/s
*(Depend on combination of materials)
Design Features/Benefits
- Cartridge seal configuration. Easy to install and operate.
- The elastomer bellows seal designed for self-aligning feature compensates for excessive shaft end-play and run-out.
- Non-Clogging, Single Coil Spring will not run foul due to fluid contact.
- Independent of shaft rotating direction.
- A flushing fluid injected into the seal chamber for clean seal faces.
Standard Materials
- Metal Parts : SUS 316
- Spring : SUS 316
- Rotary Face : Carbon
- Stationary Face : Ceramic
- Secondary Seals : Nitrile-butadiene Rubber
*(Other configuration of materials also available on request)
