DS-901
Suitable for a wide range of services conditions.
Application
- For use in pumps, compressors and other rotary shaft equipment.

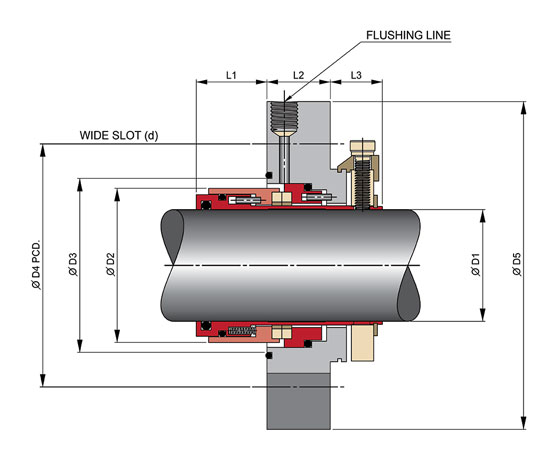

View Sheet
Operating Conditions
- Max. Operating Pressure : 20 kg/cm 2 *
- Temperature Range : -15 to 200 *
- Max. Rubbing Speed : 25 m/s
*(Depend on combination of materials)
Design Features/Benefits
- Cartridge seal configuration. Easy to install and operate.
- Multiple springs exert even closing force on seal faces. Ensure even loading of seal face and compensates for acceptable shaft misalignment.
- Springs are isolated from liquid rich in solid impurity.
- A flushing fluid injected into the seal chamber for clean seal faces.
Standard Materials
- Metal Parts : SUS 316
- Spring : SUS 316
- Rotary Face : Silicon Carbide/Tungsten Carbide
- Stationary Face : Silicon Carbide/Tungsten Carbide/Carbon
- Secondary Seals : Fluoroelastomer/Nitrile/Ethylene Propylene
*(Other configuration of materials also available on request)
