DS-95N
For general purpose applications.
Application
- For use with extremely corrosive chemicals, chemical, and refinery processing pump applications.
- For process services requiring corrosion resistance.
- Very good self cleaning effect.
- Suitable for low-end sterile applications.
The DS-95N seal is the ideal for general purpose applications. Its Alloy 20, Hastelloy C, Titanium, AM 350 bellows provide corrosion resistance in a board rang of services. Its cost-effective design, combined with a reliable performance.

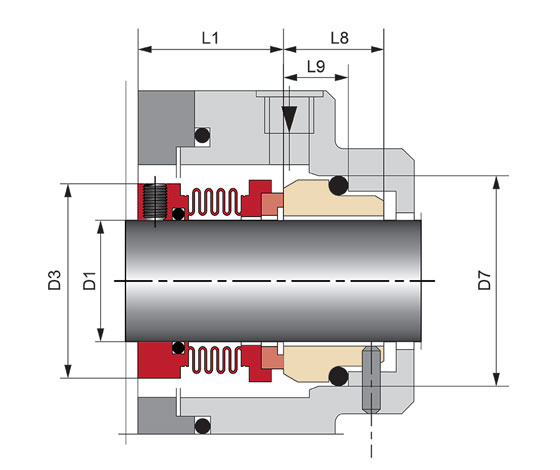

View Sheet
Operating Conditions
- Max. Operating Pressure : 20 kg/cm2 *
- Temperature Range : -40 to 220 *
- Max. Rubbing Speed : 20 m/s
*(Depend on combination of materials)
Design Features/Benefits
- Results in even stress distribution with
benefits of greater strength and higher rate
of flexibility: seal is bi-rotational and inherently pressure balanced. - Is resistance to clogging and therefore ideal
for slurries and fibrous liquids. Similarly, seal
unit is easy to clean and sterilize in place. - Ensures a simple-to-fit seal, with superior
heat dissipation paths, Seal unit is reliable
and does not wear the shaft.
Standard Materials
- Metal Bellows : Alloy 20, Hastelloy C,
Titanium, AM 350 - Adaptive Hardware: Alloy 20, Hastelloy C,
Titanium, SUS 316 - Rotary Face : Silicon Carbide/
Tungsten Carbide/Carbon - Stationary Face : Silicon Carbide/
Tungsten Carbide/Carbon - Secondary Seals : Fluoroelastomer/
Per-Fluoroelastomer/Chemraz
*(Other configuration of materials also available on request)
